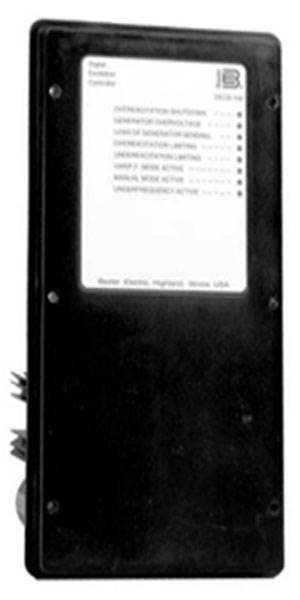

Compact Excitation System for 5MW or Below Synchronous Machines

Amtech offers a high powered, low-cost digital excitation control system. This environmentally rugged product is ideally suited for controlling the output of brush-less excited synchronous generators up to 5MW. This has a very impressive 7Adc output from a pulse width modulated power stage. It is perfect for machines that will be paralleled to other generators and/or to the utility system. It is ideal for distributed generation, co-generation and peak shaving applications. It is easy to use, and it has communications capability with a PC. It utilizes microprocessor technology and control algorithms pioneered by us for longer than a decade. It shares many features and functions of our larger excitation control systems. It is fifth generation of microprocessor-based excitation system.

  • Microprocessor based
  • 0.25% Voltage Regulation Accuracy
  • 0.5% accuracy up to 40% THD (harmonics associated with 6 SCR load)
  • 63Vdc @ 7Adc PWM output
  • 0-3X V/Hz limiting
  • Soft Start capability
  • 20 standard stability selections and one customizable selection
  • VAR/PF control
  • Over excitation limiting
  • Under excitation limiting
  • Voltage Matching
  • Manual Mode (Field current regulation)
  • Paralleling input from 1 or 5A CT secondary
  • Nominal sensing inputs of 120, 240, 480 and 600Vac
  • Power Input from 50/60Hz shunt connections or PMGs operating at 50 to 400Hz
  • Five generator protection functions including Loss of Sensing transfer to manual
  • Alarm Contact Output
  • Accessory input
  • Setup via PC.
  • CURus recognition per UL 508 and CSA Standard C22.2 No. 14
  • DNV Standard for Certification 2.4
  • CE compliant
